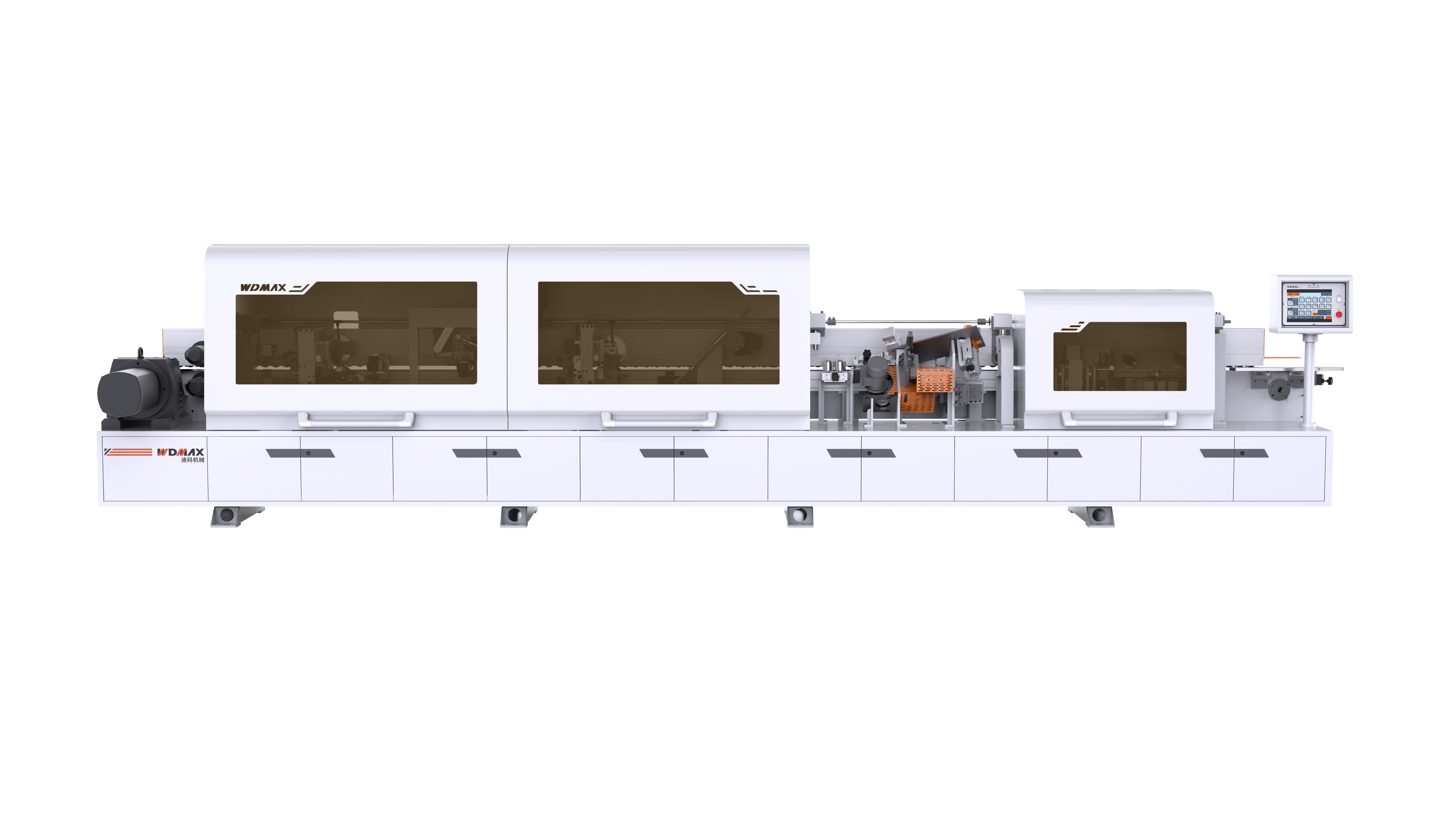

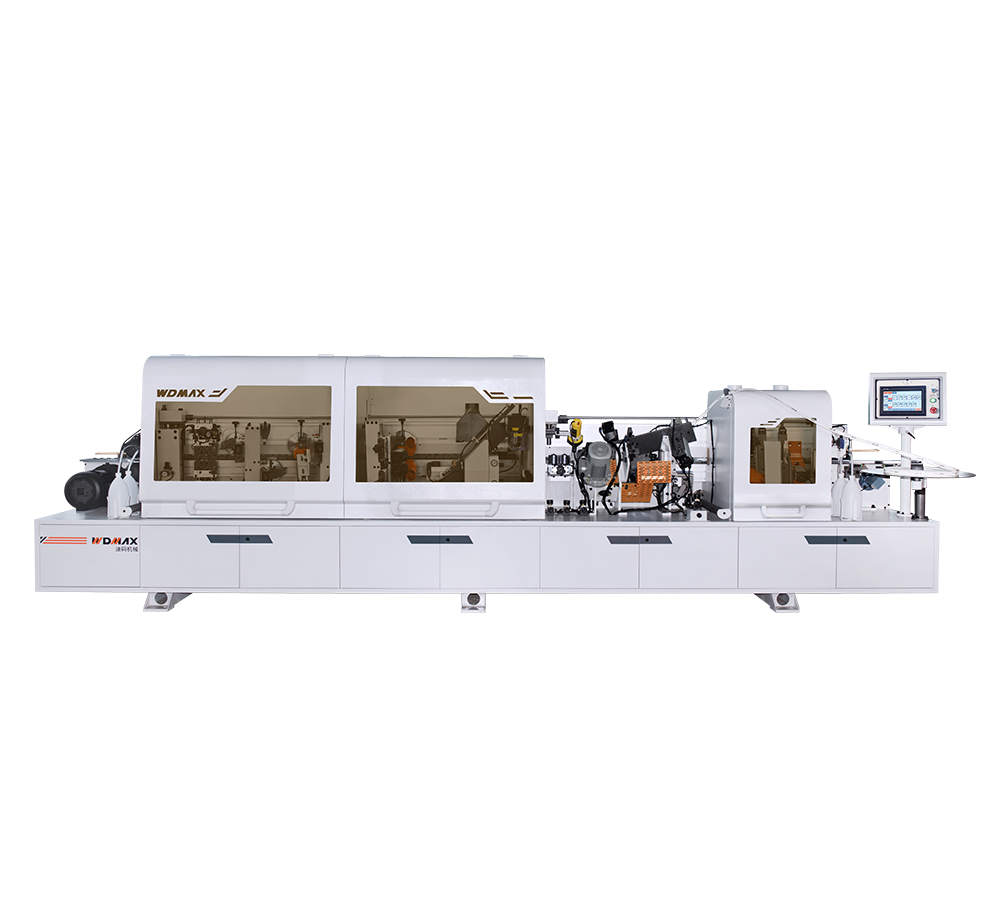

WE-395JCU
产品优势
固定45°不可调节,斜边可为全斜或部分斜即半斜,直边尺寸范围为 0-10mm。
Fixed 45° is not adjustable, The bevel side can be fully beveled or partially oblique, that is, semi-oblique, and the dimensions of the straight side are 0-10mm.
斜直一体双色PUR涂胶压贴
Bevel/straight edget PUR glueing&pressing
配备正反刃的直边预铣和斜边预铣机构,减少爆边和崩带问题
The straight edge pre-milling and beveled edge pre-milling mechanism equipped with positive and negative blades reduces edge chipping and breakout issues.
技术参数
型号:WE-395JCU | |
---|---|
进给速度
Feeding Speed(m/min) |
14 |
封边带厚度
Tape thickness(mm) |
0.45-1.5(斜Tilt) |
工件厚度 Panel Thickness(mm) |
9-25(斜Tilt) |
工件长度 Panel Length(mm) |
≥150 |
工件宽度 Panel Width(mm) |
≥135 |
最小板尺寸 封边尺寸为长边 Min. Panel Size(mm) |
150*135 |
总功率 Total Power(kW) |
27.86 |
外形尺寸 Machine Size长(L)宽(W)高(H)(mm) |
7087L*830W*1700H |
吸尘口尺寸及数量 Size & QTY of Dust Hood |
φ125*8 |
